Oscilloscope Scope Current probe AC/DC +/-10A with BNC cable

Product detailed description

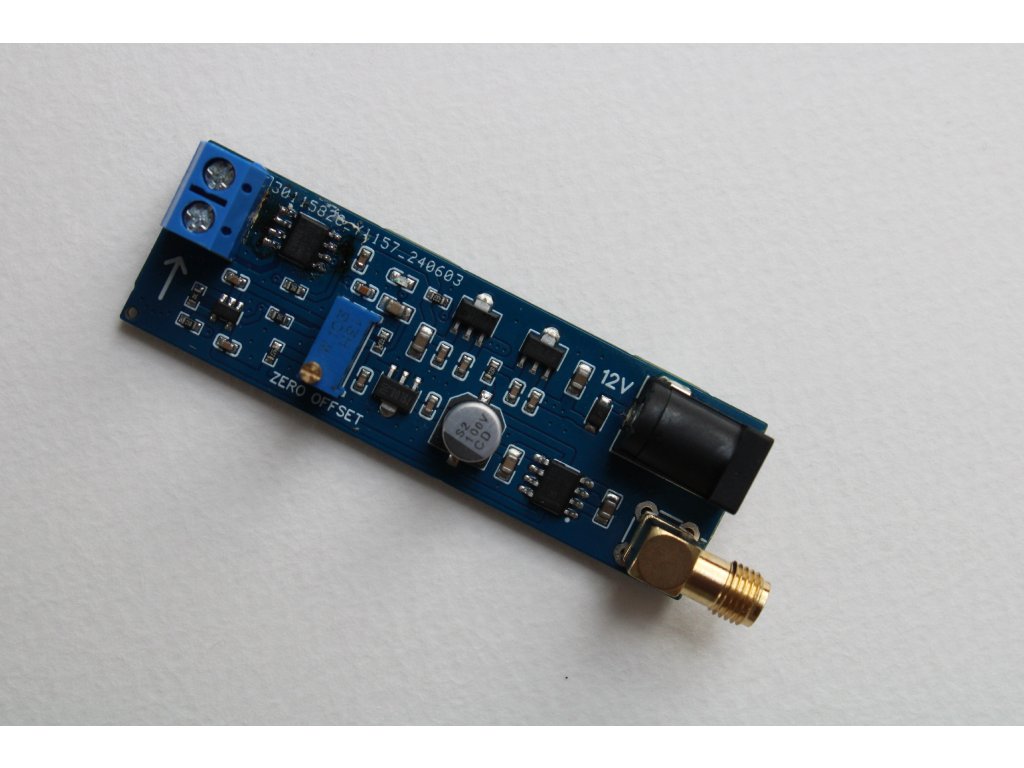

AC/DC current probe based on ACS724 for using with oscilloscope

- galvanically isolated current sensor ACS724-10AB-T
- AC/DC current measurement range +/- 10A, maximal current +/-15A
- the probe maximal output voltage +/-2V at +/-10A load current
- sensitivity 200mV/A (2V reading at 10A load), the voltage reading is proportional to the load current
- frequency bandwidth 120kHz
- noise level 20mV

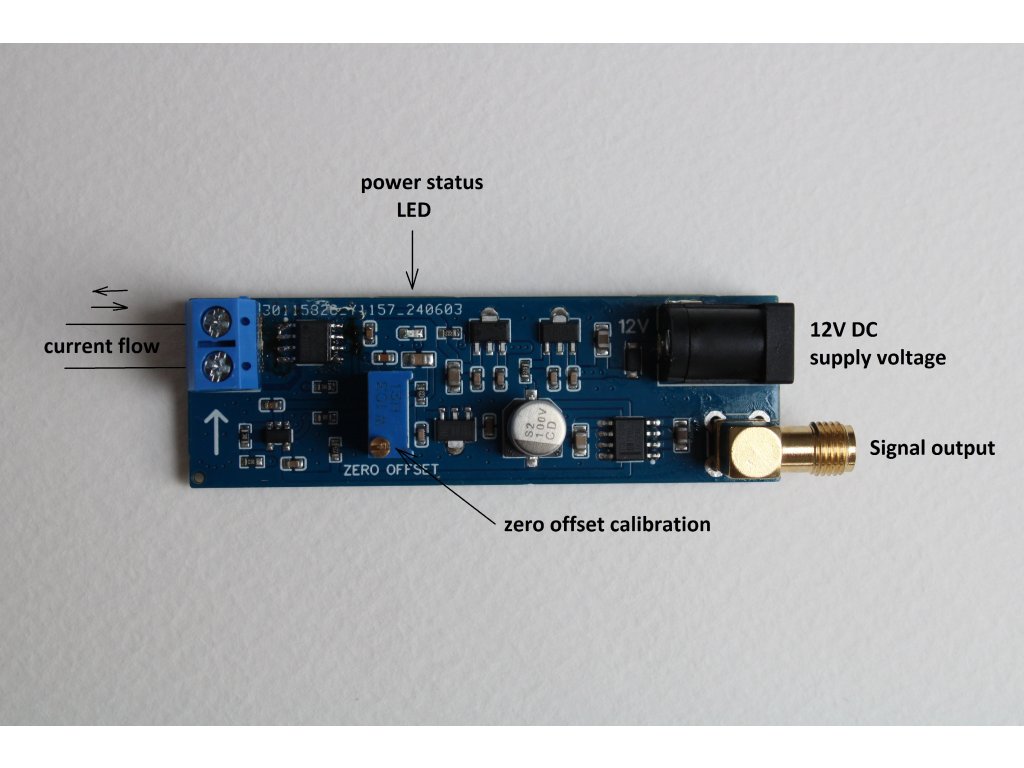

- power status LED diode

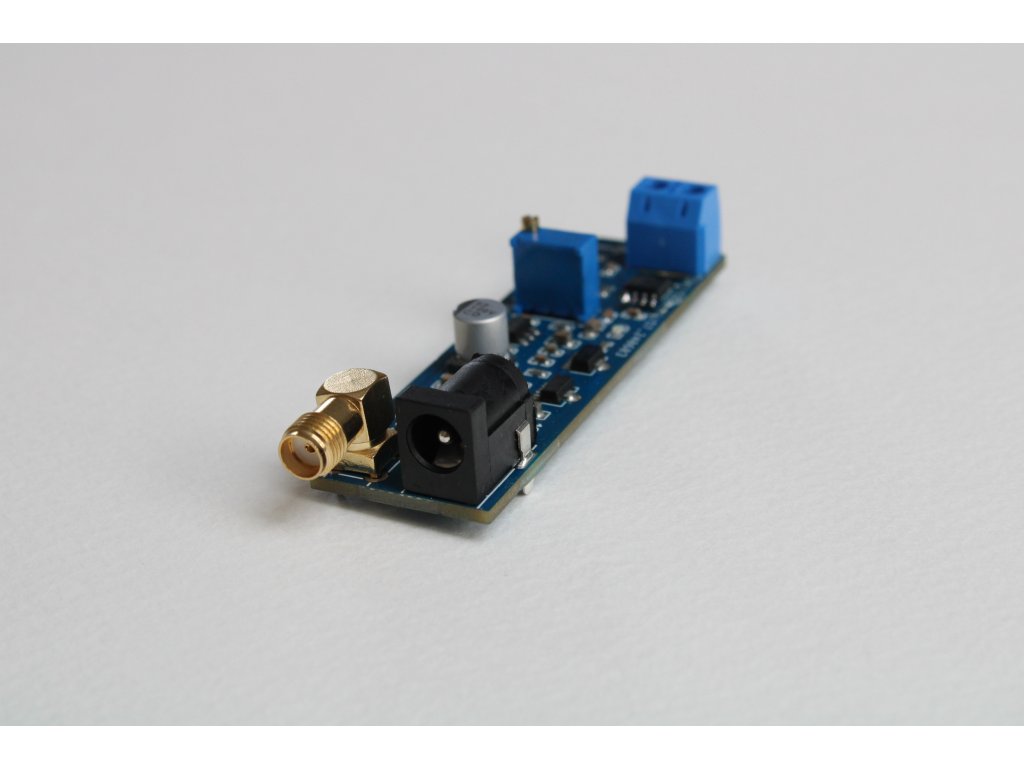

- DC supply voltage 12V from lab supply or wall adapter with standard 5.5mm plug
- reverse supply voltage protection
- PCB dimensions 68.5mm x 22mm x 1.5mm

Note to check/calibrate zero offset with potentiometer before measurement.

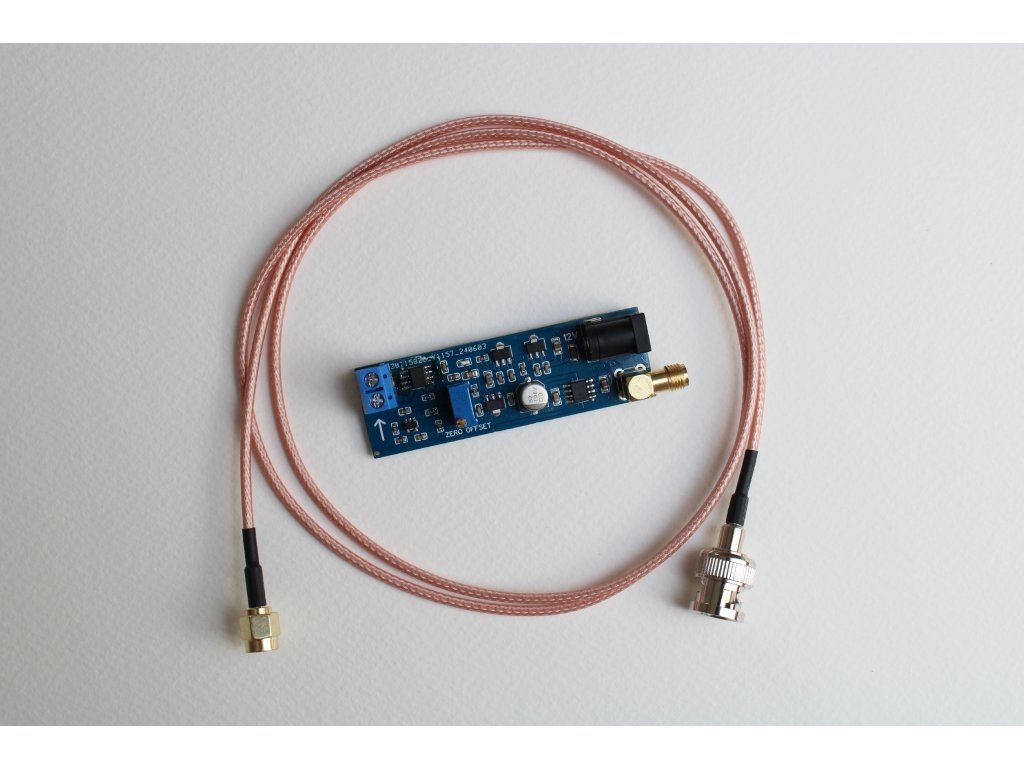

Supplied with 100cm quality RG-316 coax cable with BNC connector for connecting with the oscilloscope
