RF FET active probe 100kHz - 1.5GHz with BNC cable and SMA connector
Product detailed description

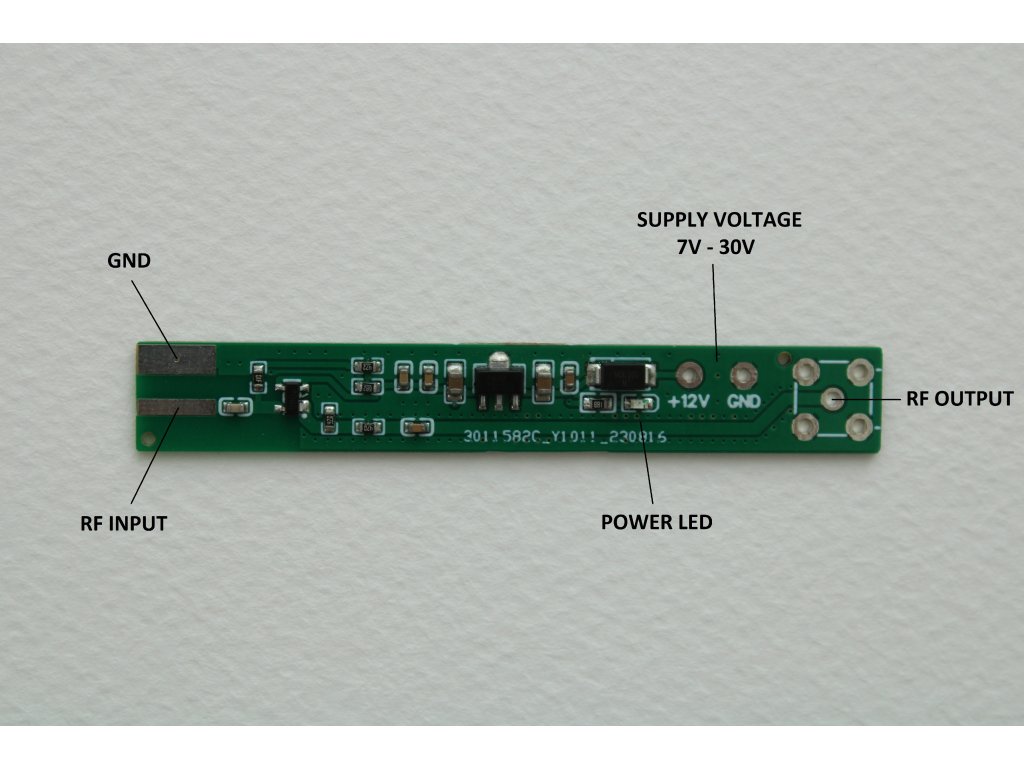

Low input capacitance active FET probe 100kHz - 1.5GHz for RF measurements

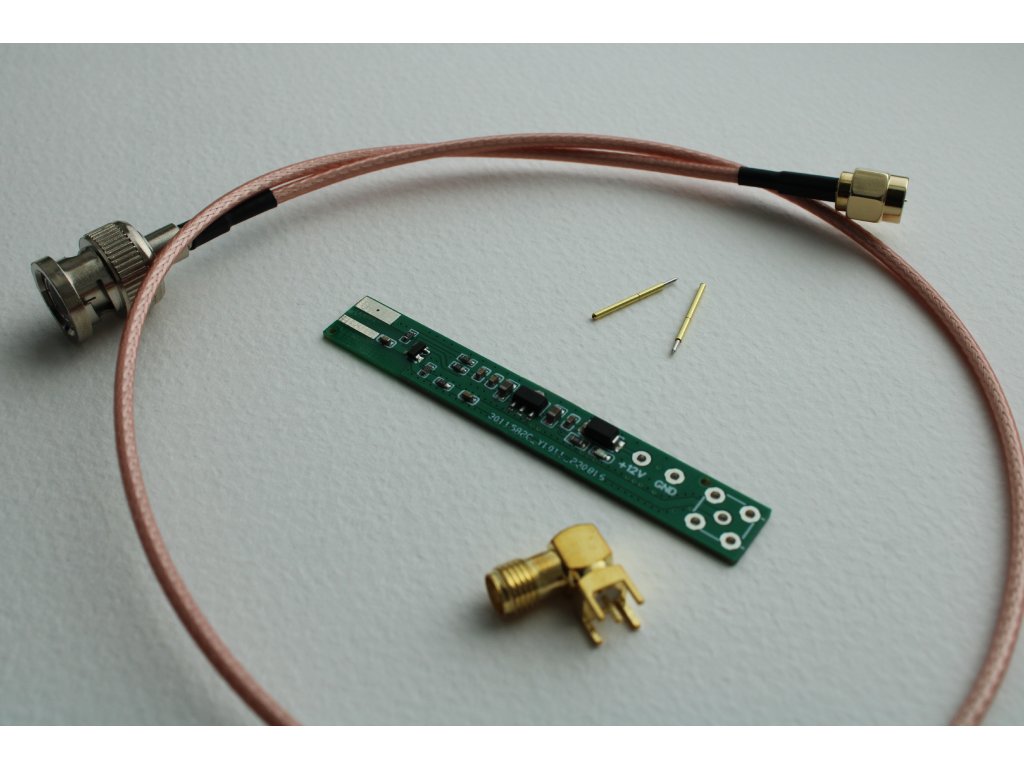

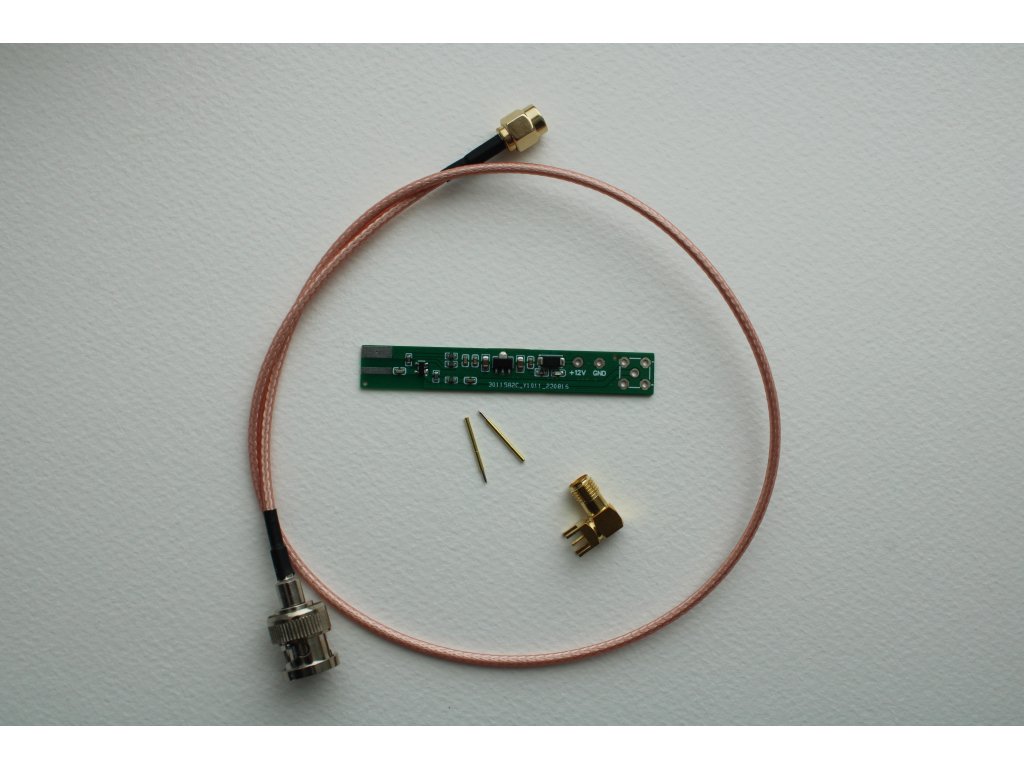

supplied with 2pcs golden plated spring loaded pin, SMA connector, 100cm quality RG-316 coax cable with BNC connector for connecting with the oscilloscope
input impedance 10Mohm
input capacitance 0.5pF
high frequency BF998 FET transistor input stage
gain -15dB +/-2.5dB (fits approx. 5:1 the probe voltage ratio)
power status LED diode
DC supply voltage 7V - 30V
reverse supply voltage protection

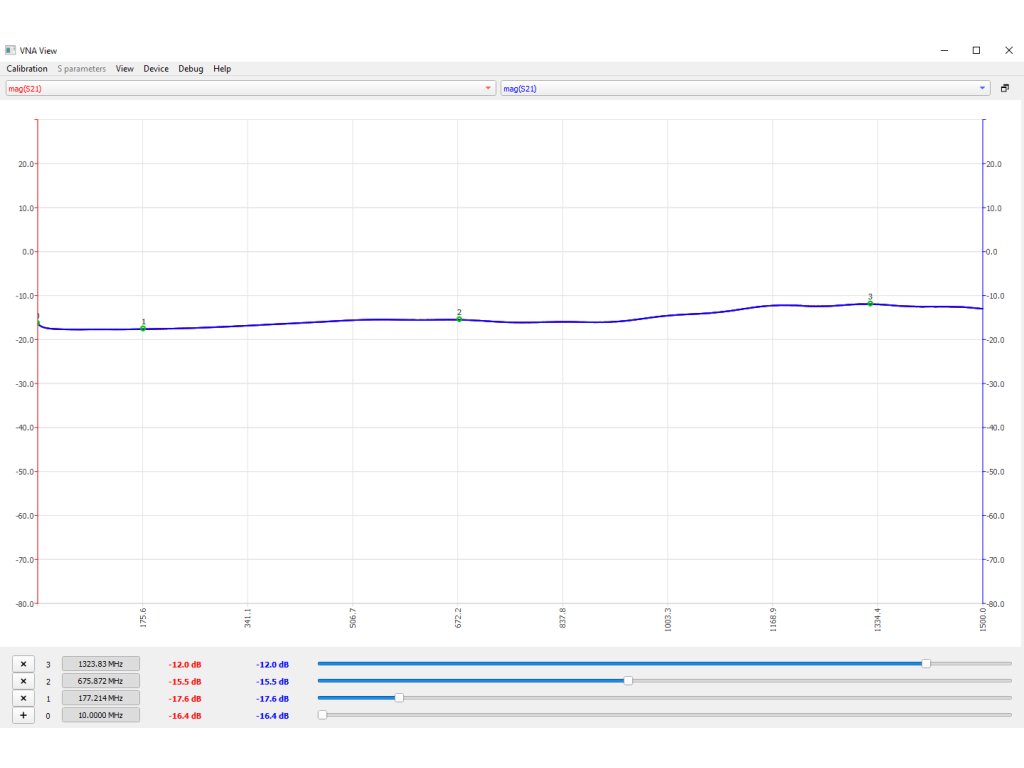

all boards are tested with Vector Network Analyzer
PCB dimensions 68mm x 10mm x 1mm
