ZX MAX 128 issue 5 - Spectrum clone Harlequin assembled

Product detailed description

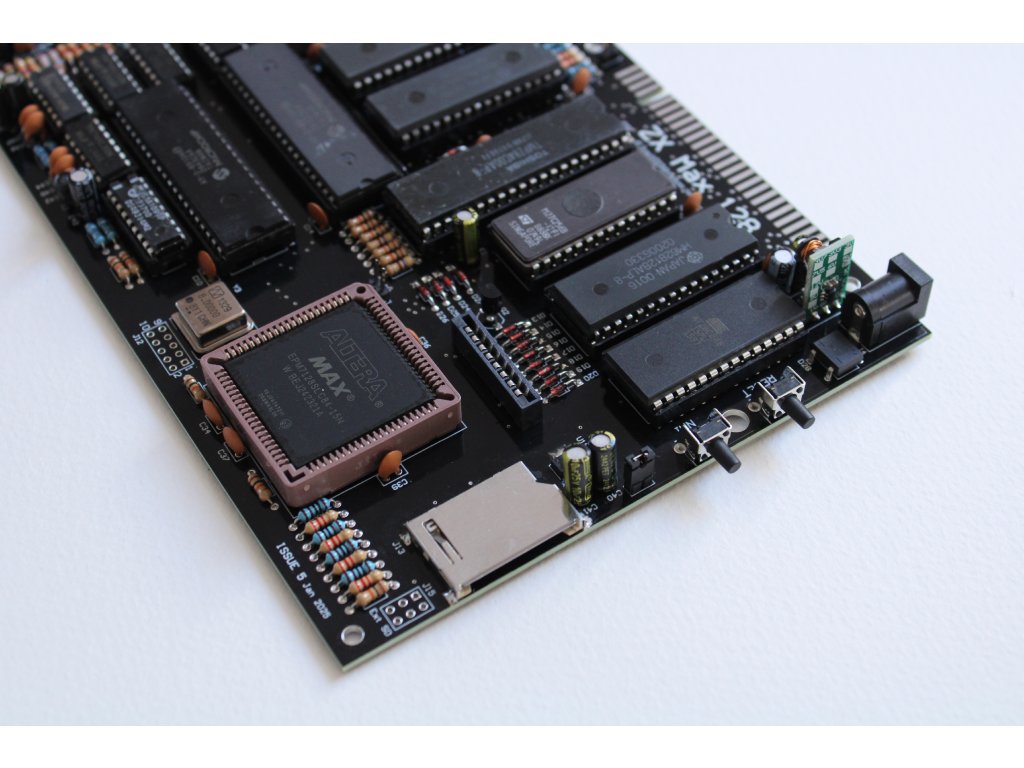

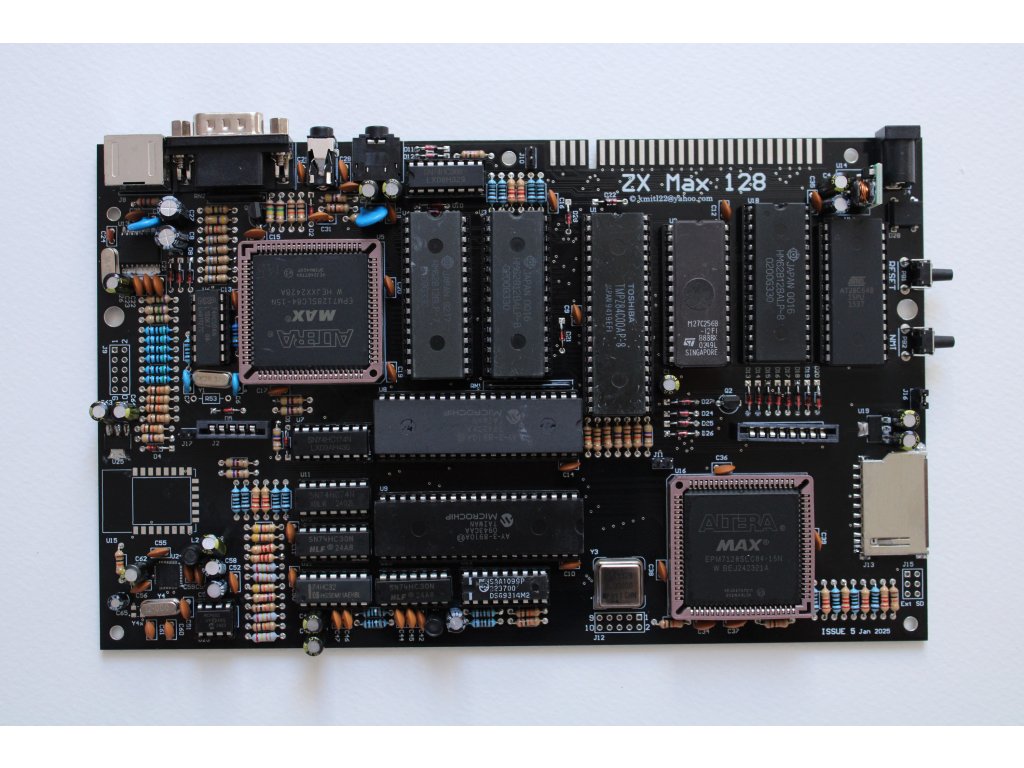

ZX MAX 128 issue 5, the ZX Spectrum clone based on Altera EPM7128, fits original case of ZX Spectrum 48K or 48K+

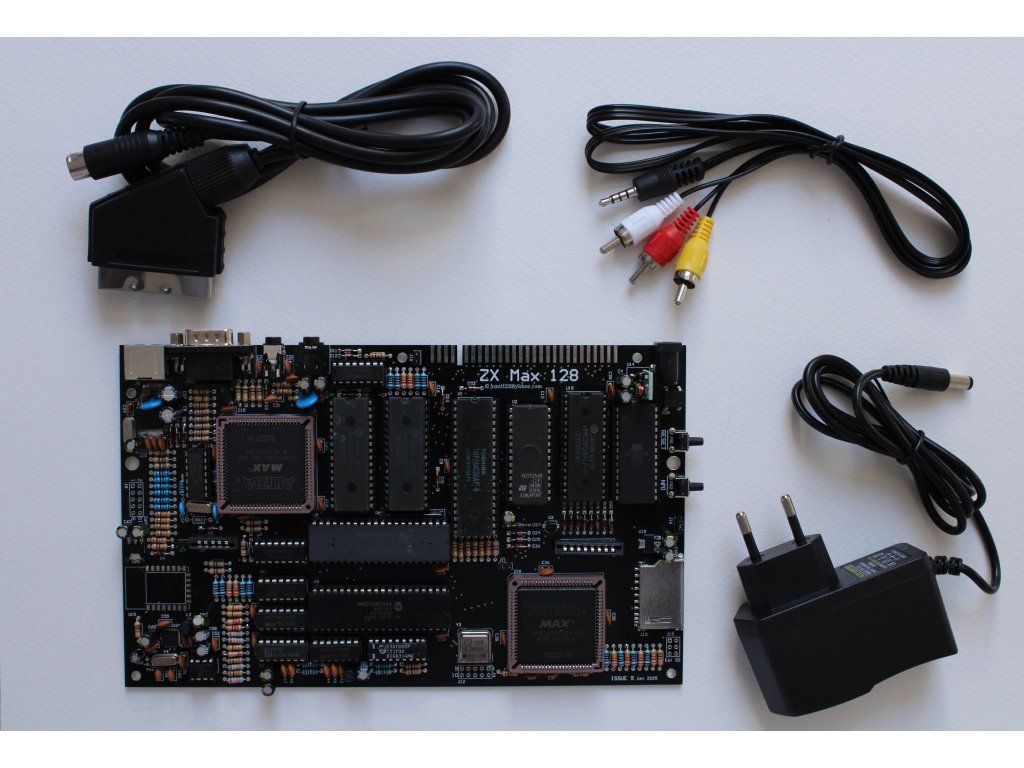

you will receive fully assembled and tested ZX MAX 128 issue 5 mainboard, AV cable, RGB to SCART cable and 12V/1A power supply.

PCB version 5
32K ROM
128K RAM
2 x AY-3-8910 Turbo Sound
Composite and RGB PAL output
DivMMC on Board (SD card with games and demos included)
SAA1099 Sound Chip
SAM2695 MiDi Player
Kempston Joystick

- AY audio output is available on EAR/MIC and SCART connector
- low efficient LM7805 linear regulator is replaced with modern DCDC converter, overheating is reduced to minimum
- total consumption of about 0.3A from 12V DC power supply
- very good compatibility with original ZX Spectrum
- supplied either with original Z80 CPU or alternative TMPZ84C00AP

The project documentation is available on:

https://github.com/DonSuperfo/ZX-Max-128/tree/main/Issue%205
